2015-03-16 / Press Release

A highly attractive choice: insulbar ESP for an optimized paintwork result

The insulating profile made of electrostatically modified material ensures improved attraction of paint particles during powder coating of the aluminium window assembly.

Perfect painting results for the metal frames used in windows, doors and facades require the use of ultrafine powder particles. If electrostatically charged, they adhere to surfaces charged with the opposite polarity during application, forming a paint layer after curing. However, the challenge here is to ensure an even coating of materials with different conductivity levels, where for instance the outer and inner shells of a metal frame are joined to an insulating bar made of plastic.

Plastics specialist Ensinger has developed its insulbar ESP insulating profile made of electrostatically optimized material specifically for what is known as "coating in the finished assembly". The plastic TECATHERM 66 ESP attracts the paint particles more effectively than conventional less conductive polyamide, so ensuring a more even paint layer. Particularly in the case of metal constructions with visible thermal insulating profiles, and when working with non-standard solutions whose design makes them difficult to coat, insulbar ESP ensures excellent optical appeal and quality.

Optimized for coating in the finished assembly

"For our customers, the facility for coating in the finished assembly means considerable process and cost optimization", explains Frank Killinger, Head of Sales for insulbar at Ensinger. “Time-consuming and expensive additional work steps such as foil covering of already painted aluminium shells to protect the surfaces during manufacture of the assembly is no longer necessary. Any optional quantity of assembled profiles can now be produced in advance, with color selection and painting taking place at a later date. This simplifies stocking and at the same time guarantees maximum color diversity".

To allow optimum paint adhesion, Ensinger offers insulbar ESP insulating profiles which have been additionally dust blasted. Dust blasting increases the surface tension to around 70 mN/m by roughening. As a comparison: Conventional polyamide 66 profiles have a surface tension of around 30 mN/m, while for reliable paint adhesion the recommended surface tension is over 50 mN/m.
Like all other insulbar insulating profiles, insulbar ESP profiles are capable of withstanding curing processes of up to an object temperature of 200°C without damage.


About insulbar

Ensinger GmbH is among the world's leading developers and producers of insulating profiles for window, door and facade construction. The profiles marketed under the brand name insulbar create a thermal separation between the inside and outside shells of metal frames. Insulation systems using insulbar profiles achieve optimum values in terms of energy savings and cutting the cost of heating and cooling. At the same time, insulbar profiles comply with the most stringent quality standards in every respect. They have been in successful operation around the world for over 30 years.

For more information, go to www.insulbar.com


About Ensinger

The Ensinger group is engaged in the development, manufacture and sale of compounds, semi-finished materials, profiles and technical parts made of engineering and high performance plastics through extrusion, machining and injection molding. With a total of 2,200 employees at 27 locations, the family-owned enterprise is represented worldwide in all major industrial regions with manufacturing facilities or sales offices.

For more information, go to www.ensingerplastics.com

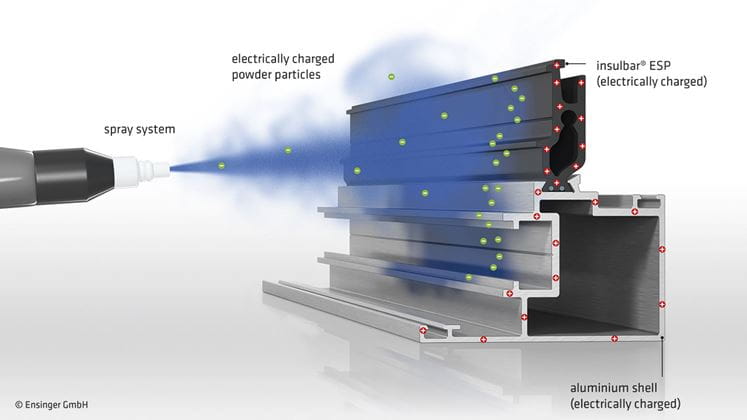

Electrically charged paint particles are attached by the electrostatically modified insulbar ESP insulating profile

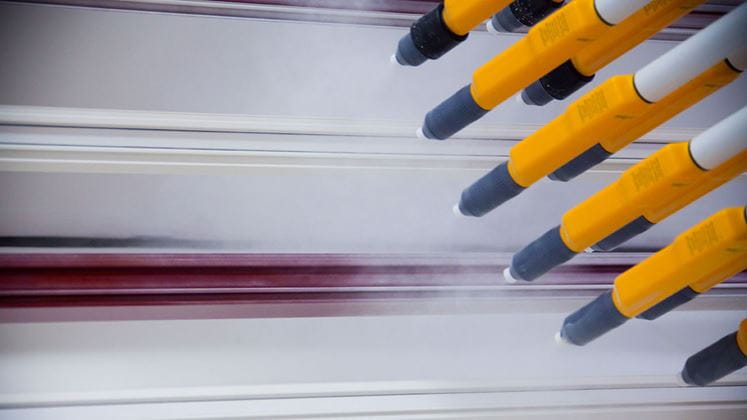

Spraying the electrically charged paint powder on a window frame profile (Picture: Wicona)

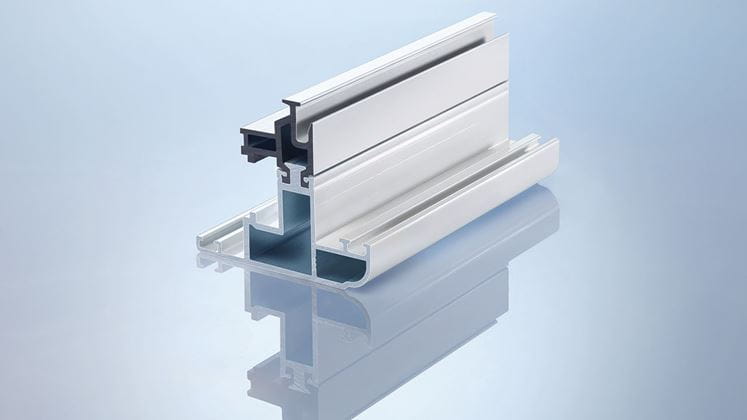

Painted assembled profile with insulbar ESP thermal insulating bar

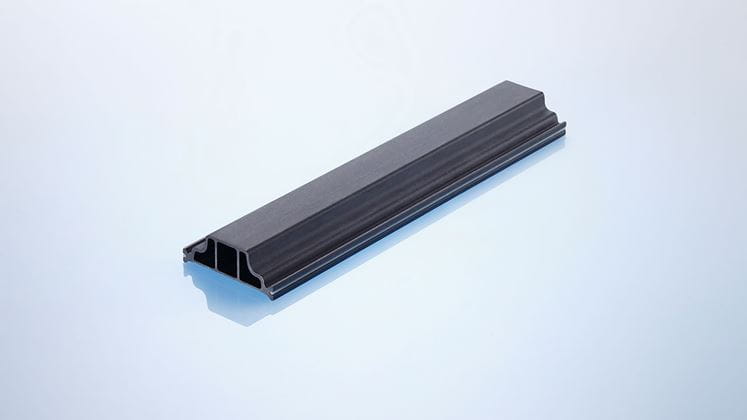

Dust blasted insulbar ESP insulating profile for a durable paint adhesion
