insulbar materials: It’s all about the right mixture

Improved materials play an important pace making role for technological development. This is also the case for the thermal separation of window systems. Alongside the technical criteria which a material essentially has to fulfil, climate and weather conditions, for example, place a variety of demands on the material.

The plastics that we use for insulbar insulating bars are almost exclusively polyamides. These have the optimum mechanical properties for this purpose.

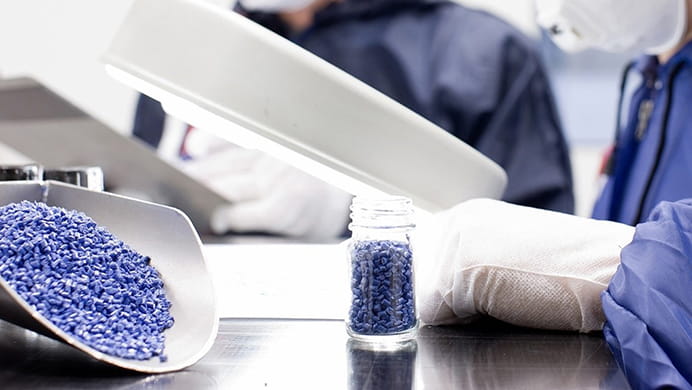

Plastic granules

Plastic bars for thermal separation of windows and façades must above all be stable, durable and have a highly insulating effect. But not all bars are the same. Different intended uses require different materials and modifications. Here is an overview of our insulbar TECATHERM materials:

Proven thousands of times over: our standard plastics

Application/ ideal for
Material
Properties
All common metal frame profiles

TECATHERM 66 GF

Polyamide 66, glass fibre reinforced

Extremely robust, perfect for hollow chamber profiles with thin walls; for powder coating and anodising in the assembly

Ecological construction

insulbar RE

TECATHERM 66 GF RE

100 % unmixed recycled polyamide 66, glass fibre reinforced

Outstanding mechanical properties; environmentally friendly and sustainable



For special cases: Customised, non-standard materials

 Application/ ideal for

Material
Properties

Improvement of existing systems with respect to the Uf value or installation depth

insulbar LI


TECATHERM 66 GF foamed

Polyamide 66 foamed, glass fibre reinforced

Optimum strength, reduced thermal conduction capacity, combines energy and cost effectiveness

Particularly low Uf values or small installation depths

insulbar LO


TECATHERM 66 PPE GF 20

Polymer blend, foamed, glass fibre reinforced

Low thermal conduction capacity, high stability; suitable for powder coating and anodising in the assembly

Powder coating

insulbar ESP


TECATHERM 66 ESP

PA 66, glass fibre reinforced, modified

Optimised electrostatic properties enable improved powder attraction during coating and thereby give a perfect appearance to the finish

Bolt operating profiles

insulbar LUB


TECATHERM 66 GF lub

PA 66, glass fibre reinforced, modified

Self-lubricating

Façade pressure plates or glazing beads


TECATHERM 66 GF 40

PA 66, with higher percentage of glass fibre (40 %)

Particularly stable



Insulating profiles from the plastics expert

The Ensinger portfolio offers over 100 different standard, engineering and high-performance plastics for every requirement and a wide variety of applications. Over and above this, over 500 plastic modifications are possible. Having over 50 years’ experience as well as the possibility of carrying out our own compounding contribute to our materials’ performance.
