It works without foam too

Our insulating bar insulbar LEF is a simple alternative to thermally insulating foam. It makes it possible to attain Uf values for metal frames which are equal to or – depending on the type of foam – even better than bars with foam incorporated. But there’s one difference: with insulbar LEF, the time-consuming cutting and subsequent insertion of foams is no longer required. Thus costly work steps can be dispensed with. In addition, insulbar LEF profiles can be powder-coated and anodized.

How insulbar LEF works

A Low-E film (LEF), applied to the flag of the polyamide bar, reflects the heat radiation between the inner and outer shell of the aluminium frame. The functional principle is the same as that of a thermos flask whose mirrored inner coating maintains the temperature for a long time by means of reflection.

insulbar LEF: The insulating profile uses a Low-E film which reflects thermal radiation. This achieves optimum thermal separation of outer and inner shells of metal frames for windows, doors and façades.

The emissivity of the Low-E film corresponds to ε = 0.03 (standards and bases: EN 12898 and EN ISO 10456). This value can be used when providing calculation-based evidence in accordance with EN ISO 10077-2 and has been confirmed with a test certificate from the Institut für Fenstertechnik [Institute of Window Technology] ift Rosenheim.

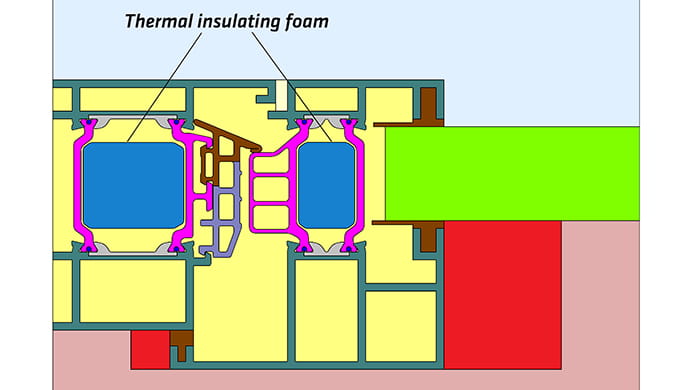

Illustration of thermal calculation of an insulation zone with additional foam Left-hand picture: Uf = 1.8 W/m²*K: insulbar insulating profile with foam (marked in blue);

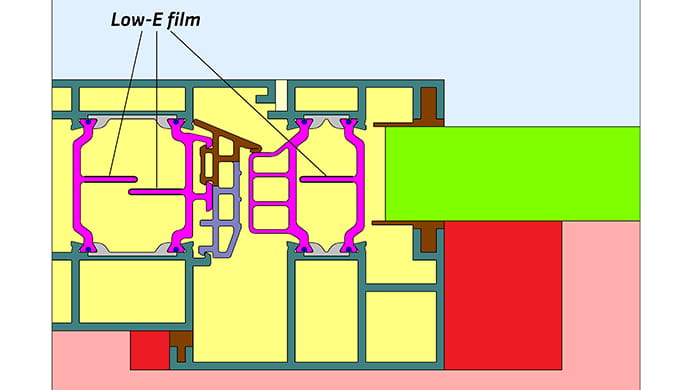

Illustration of thermal calculation of an insulation zone with insulbar LEF Right-hand picture: Uf = 1.7 W/m²*K: insulbar insulating profile with Low-E film (marked in grey), ε = 0.03

Diverse applications

insulbar LEF insulating profiles are suitable for a wide variety of requirements and systems. This is because most geometries with flags are available ready-coated with Low-E film 12 ε 3 directly from the factory. All straight and offset bars or hollow chamber profiles with flags can be equipped with the Low-E film in every common profile length.

The benefits of insulbar LEF at a glance

-    Low Uf values, comparable to profiles with foam
-    Profiles are delivered film-coated and ready for installation
-    No need for subsequent – and costly – cutting and insertion of pieces of foam
-    insulbar LEF can be powder-coated and anodized up to 200°C
-    No health hazard from fine dust
-    Diverse applications



Would you like to know more about insulbar LEF? Talk to us!
